Major Specification
|

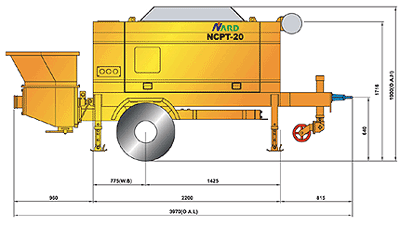

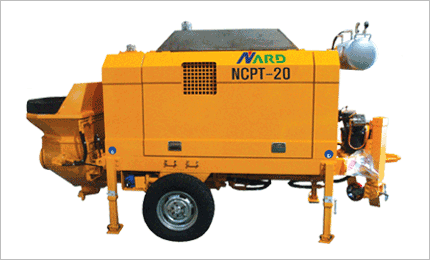

| NCPT-20 |
| Output |
Rod Side |
20㎥/hr |
26yd³/hr |
| Piston Side |
12㎥/hr |
15yd³/hr |
| Pressure |
Rod Side |
60bar |
870psi |
| Piston Side |
90bar |
1,305psi |
| Concrete Cylinder Diameter |
180mm |
7" |
| Stroke Length |
600mm |
1'96" |
| No.of Strokes / Min |
Rod Side |
22 |
| Piston Side |
14 |
| Hopper Capacity |
350L |
12.25ft³ |
| Volume Control |
|
| Hydraulic System |
Open-Circuit |
| Hydraulic System Pressure |
350bar |
5,075psi |
| Hydraulic Tank Capacity |
200L |
52gal |
| Water Pump Pressure |
20bar |
290psi |
| Outlet Diameter |
125mm |
5" |
| Max Size Aggregate |
48mm |
2" |
| Diesel Engine |
DEUTZ |
| Engine Horse Power |
50kw/68ps |
|
※The Specification can be changed without any prioi notice
|
