Major Specification
|

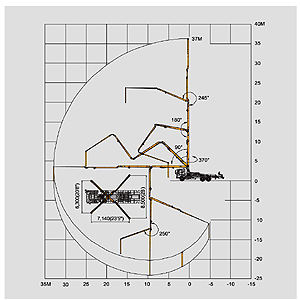

| Boom Specifications |
| Vertical Reach |
35.8m |
117′45″ |
| Horizontal Reach |
32.1m |
105′31″ |
| Unfolding Height |
8.6m |
28′21″ |
| General Specifications |
| Pipeline Diameter |
125m |
5″ |
| Rotation |
370˚ |
| End Hose Length |
4m |
13′12″ |
| End Hose Diameter |
125m |
5″ |
| Outrigger Spread Front |
6.02m |
19′75″ |
| Outrigger Spread Rear |
8.49m |
27′85″ |
| Pump Specifications |
| Output |
Rod Side |
150㎥/hr |
196yd³/hr |
| Piston Side |
102㎥/hr |
133yd³/hr |
| Pressure |
Rod Side |
87bar |
1,262psi |
| Piston Side |
130bar |
1,885psi |
| Concrete Cylinder Diameter |
230mm |
9″ |
| Stroke Length |
2,100mm |
6′88″ |
| No.of Strokes / Min |
Rod Side |
29 |
| Piston Side |
19 |
| Hopper Capacity |
650L |
23ft³ |
| Volume Control |
Zero to full |
| Hydraulic System |
Closed-Circuit |
| Hydraulic System Pressure |
350bar |
5,075psi |
| Hydraulic Tank Capacity |
400L |
106gal |
| Water Tank Capacity |
500L |
132gal |
| Water Pump Pressure |
20bar |
290psi |
| Truck Mounted Specifications |
| Truck |
M8CRF(DAEWOO) |
| Length |
11,889mm |
39′00″ |
| Max Size Aggregate |
2,495mm |
8′18″ |
| Diesel Engine |
3,910mm |
12′82″ |
| Engine Horse Power |
6,275mm |
20′58″ |
|
※The Specification can be changed without any prioi notice
|
