Major Specification
|

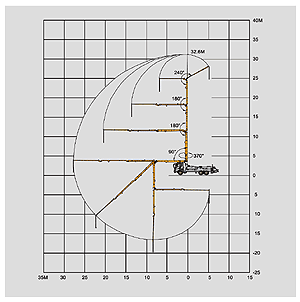

| Boom Specifications |
| Vertical Reach |
32.5m |
106′62″ |
| Horizontal Reach |
29.1m |
95′47″ |
| Unfolding Height |
7.53m |
24′70″ |
| General Specifications |
| Pipeline Diameter |
125m |
5″ |
| Rotation |
370˚ |
| End Hose Length |
4m |
13′12″ |
| End Hose Diameter |
125m |
5″ |
| Outrigger Spread Front |
5.89m |
19′75″ |
| Outrigger Spread Rear |
5.40m |
27′85″ |
| Pump Specifications |
| Output |
Rod Side |
125㎥/hr |
163yd³/hr |
| Piston Side |
70㎥/hr |
158yd³/hr |
| Pressure |
Rod Side |
53bar |
768psi |
| Piston Side |
95bar |
1,377psi |
| Concrete Cylinder Diameter |
230mm |
9″ |
| Stroke Length |
2,100mm |
6′88″ |
| No.of Strokes / Min |
Rod Side |
24 |
| Piston Side |
13 |
| Hopper Capacity |
650L |
23ft³ |
| Volume Control |
Zero to full |
| Hydraulic System |
Closed-Circuit |
| Hydraulic System Pressure |
350bar |
5,075psi |
| Hydraulic Tank Capacity |
400L |
106gal |
| Water Tank Capacity |
500L |
132gal |
| Water Pump Pressure |
20bar |
290psi |

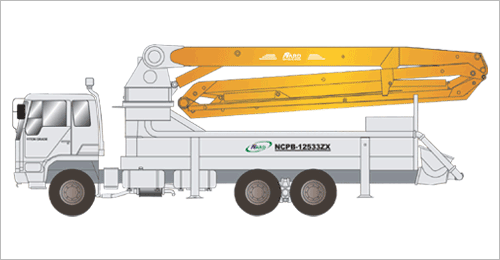

| Truck Mounted Specifications |
| Truck |
M8CRF(DAEWOO) |
| Length |
11,054mm |
36′26″ |
| Max Size Aggregate |
2,495mm |
8′18″ |
| Diesel Engine |
3,930mm |
12′89″ |
| Engine Horse Power |
5,875mm |
19′27″ |
|
※The Specification can be changed without any prioi notice
|
