Major Specification
|

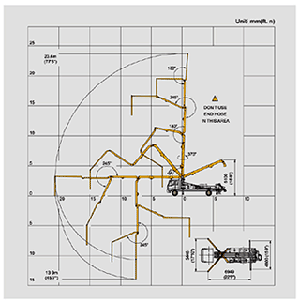

| Boom Specifications |
| Vertical Reach |
47.8m |
156'82" |
| Horizontal Reach |
43.8m |
143'70" |
| Unfolding Height |
11.5m |
37'72" |
| General Specifications |
| Pipeline Diameter |
125m |
5″ |
| Rotation |
360˚ |
| End Hose Length |
4m |
13′12″ |
| End Hose Diameter |
125m |
5″ |
| Outrigger Spread Front |
8.64m |
28′34″ |
| Outrigger Spread Rear |
10.24m |
33′59″ |
| Pump Specifications |
| Output |
Rod Side |
180㎥/hr |
235yd³/hr |
| Piston Side |
121㎥/hr |
158yd³/hr |
| Pressure |
Rod Side |
87bar |
1,262psi |
| Piston Side |
130bar |
1,885psi |
| Concrete Cylinder Diameter |
230mm |
9″ |
| Stroke Length |
2,350mm |
7′70″ |
| No.of Strokes / Min |
Rod Side |
30 |
| Piston Side |
20 |
| Hopper Capacity |
650L |
23ft³ |
| Volume Control |
Zero to full |
| Hydraulic System |
Closed-Circuit |
| Hydraulic System Pressure |
350bar |
5,075psi |
| Hydraulic Tank Capacity |
400L |
106gal |
| Water Tank Capacity |
500L |
132gal |
| Water Pump Pressure |
20bar |
290psi |
| Truck Mounted Specifications |
| Truck |
M9CSF(DAEWOO) |
| Length |
13,466mm |
44′17″ |
| Max Size Aggregate |
2,495mm |
8′18″ |
| Diesel Engine |
3,960mm |
12′99″ |
| Engine Horse Power |
7,800mm |
25′59″ |
|
※The Specification can be changed without any prioi notice
|
