Major Specification
|

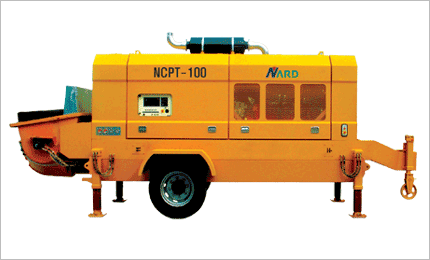

| NCPT-100 |
| Output |
Rod Side |
95㎥/hr |
124yd³/hr |
| Piston Side |
64㎥/hr |
83yd³/hr |
| Pressure |
Rod Side |
115bar |
1,667psi |
| Piston Side |
170bar |
2,465psi |
| Concrete Cylinder Diameter |
200mm |
8" |
| Stroke Length |
2,100mm |
6'88" |
| No.of Strokes / Min |
Rod Side |
24 |
| Piston Side |
16 |
| Hopper Capacity |
650L |
23ft³ |
| Volume Control |
Zero to full |
| Hydraulic System |
Closed-Circuit |
| Hydraulic System Pressure |
350bar |
5,075psi |
| Hydraulic Tank Capacity |
340L |
90gal |
| Water Pump Pressure |
20bar |
290psi |
| Outlet Diameter |
125mm |
5" |
| Max Size Aggregate |
63mm |
2.5" |
| Diesel Engine |
DOOSAN |
| Engine Horse Power |
213kw/290ps |
|
※The Specification can be changed without any prioi notice
|
